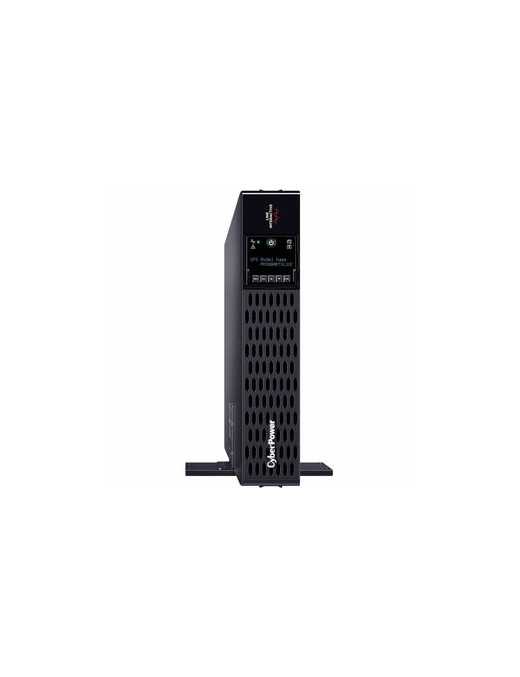

Cyber Power CyberPower Smart App Sinewave PR3000RTXL2UC 3000VA Rack/Tower UPS - 2U Rack/Tower - AVR - 3 Hour Recharge - 1.70 Min

Fiche technique

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

PR3000RTXL2UC

Manufacturer Website Address

http://www.cyberpowersystems.com

Brand Name

CyberPower

Product Name

Smart App Sinewave PR3000RTXL2UC 3000VA Rack/Tower UPS

Product Type

Line-interactive UPS

Hauteur

3.40 (86.36 mm)"

Largeur

17.10 (434.34 mm)"

Profondeur

19.70 (500.38 mm)"

Additional Warranty Information

pConnected Equipment Guarantee: Lifetime/p

Application/Usage

Equipment
Network Device
Server
Storage Device
Telecommunication
VoIP

Product Model

PR3000RTXL2UC

Battery Chemistry

Lead Acid

Weight (Approximate)

34.20 kg

Input Voltage

120 V AC

Product Color

Noir

Product Series

Smart App Sinewave

USB

Yes

Form Factor

Rack/Tower

Environmentally Friendly

Yes

Environmental Certification

GreenPower UPS
RoHS

Energy Star

Yes

Output Voltage

100 V AC
110 V AC
120 V AC
125 V AC

Input Voltage Range

70 V AC - 155 V AC

Status Indicators

pbLED Indicators:/b/pulli Power On/lili Line Mode/lili Battery Mode/lili Fault/li/ul

Battery Size

12V

Battery Capacity

9000 mAh

Serial Port

Yes

Rack Height

2U

Surge Energy Rating

2430 J

Receptacle Detail

1 x NEMA L5-30R
8 x NEMA 5-20R

Hot Swappable

Yes

Receptacle Type

NEMA 5-20R
NEMA L5-30R

Battery Characteristics

Sealed

Waveform Type

Sine Wave

AVR

Yes

Number of Battery & Surge Outlets

9

Transfer Time

4 ms

Input Frequency

63 Hz

Output Frequency

60 Hz

Alarm

Battery Mode
Fault
Low Battery
Over-charge
Overload

USB (HID Compliant) Port

Yes

Typical Battery Recharge Time

3 Hour

Replaceable Battery

Yes

Maximum Operating Temperature

104°F (40°C)

Maximum Operating Elevation

9842.52 ft (3000000 mm)

Number of Batteries

4

Thermal Dissipation

192.50 BTU/h

Maximum Storage Elevation

49209.32 ft (14999000 mm)

Sound Emission (A-Weighted)

57.5 dB(A)

Network Management

Dry Contact
Relay-MS Card
SNMP/HTTP Remote Monitoring

Overload Protection

Yes

EPO Port

Yes

Load Capacity (VA)

3 kVA

Number of Critical Load Outlets

4

Product Family

Smart App Sinewave

Plug/Connector Type

NEMA L5-30P

Backup/Run Time (Half Load)

7 Minute

Backup/Run Time (Full Load)

1.70 Minute

Load Capacity (W)

3 kW

EMI/RFI Noise Filter

Yes

Display

LCD
