Tripp Lite by Eaton Cisco N286-100G-SR4SC QSFP28 Module - For Optical Network, Data Networking, Server, Switching Network - 1 x

Tripp Lite by Eaton Cisco N286-100G-SR4SC QSFP28 Module - For Optical Network, Data Networking, Server, Switching Network - 1 x 100GBase-SR Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR328.08 ft (100000 mm) Maximum Distance - Hot-swappable

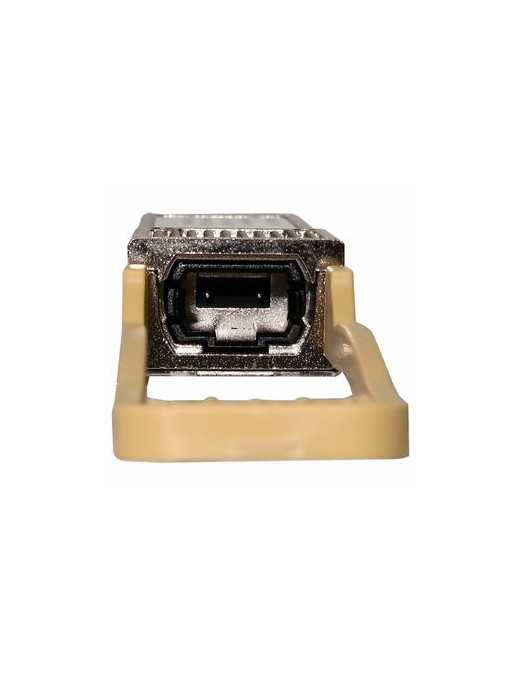

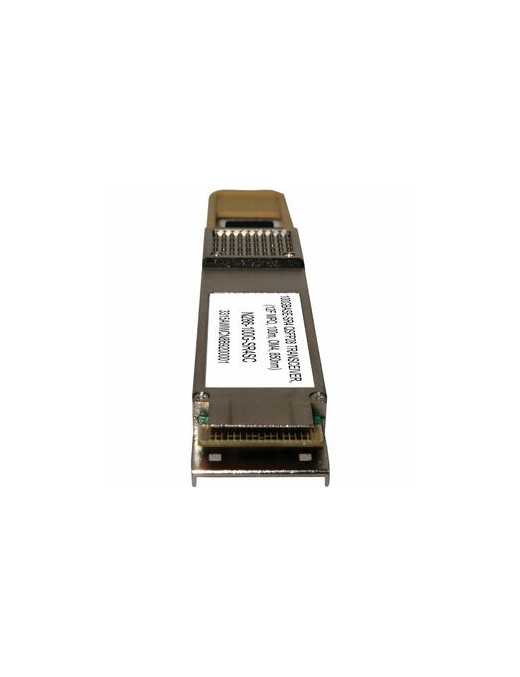

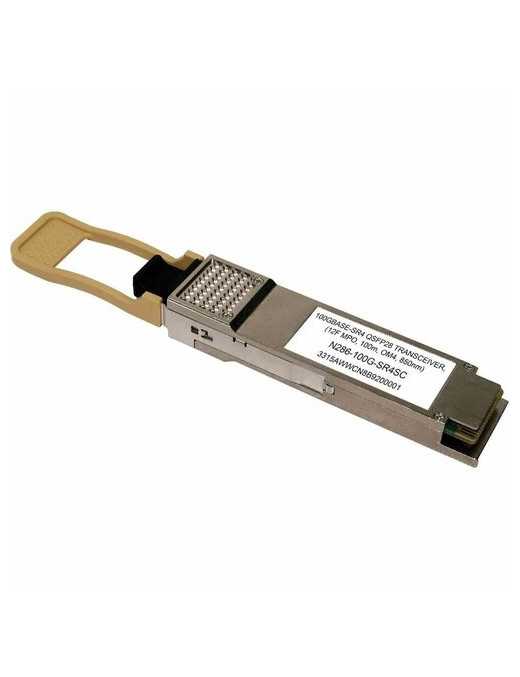

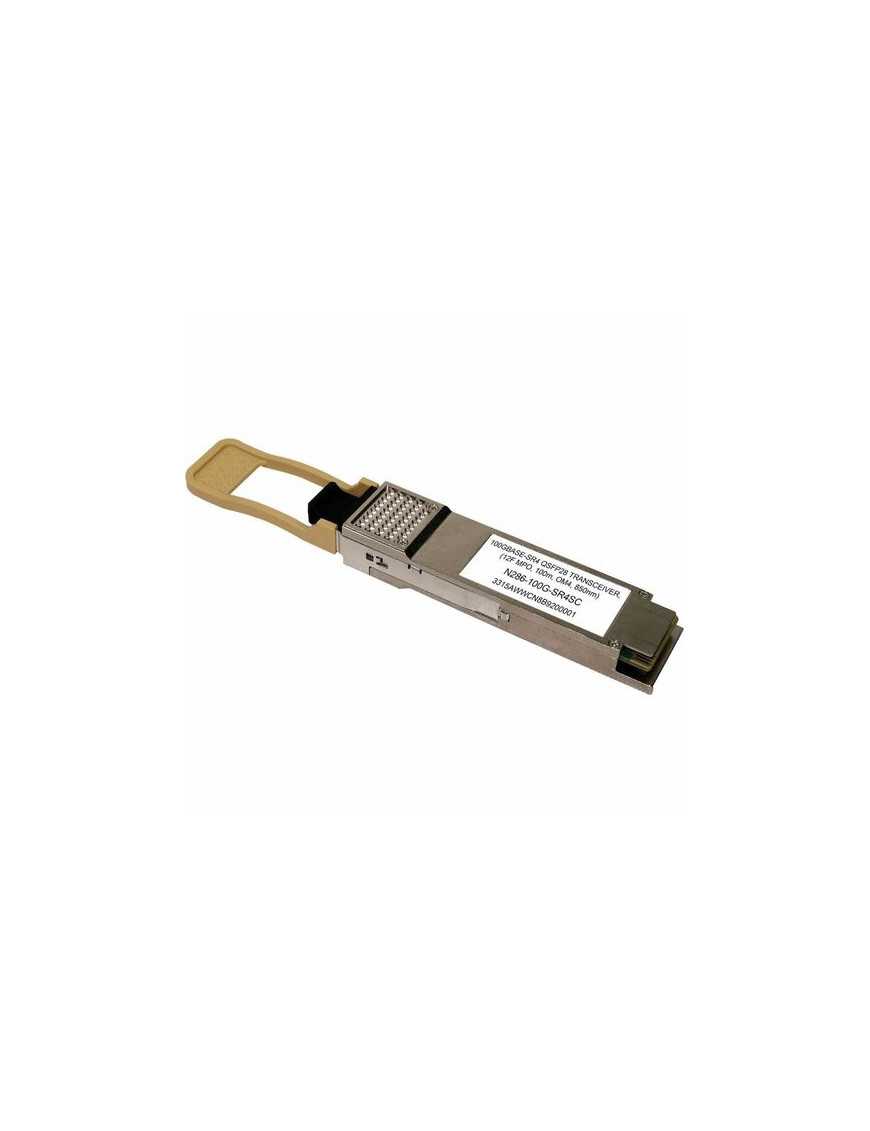

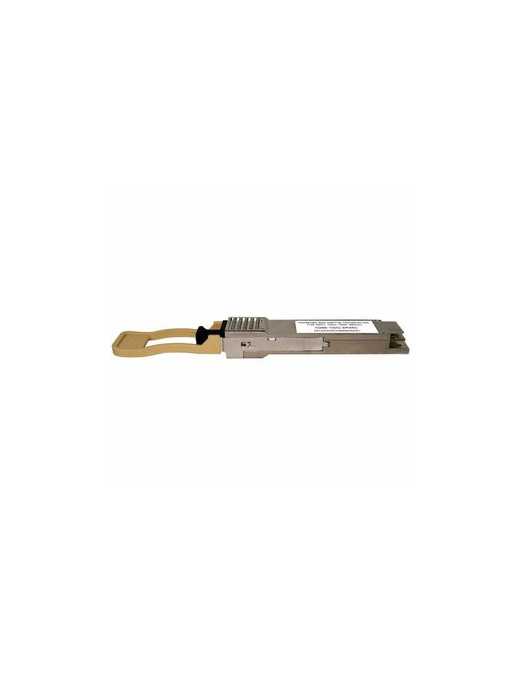

QSFP28 Transceiver for Connecting to Your Cisco Network Switch or Server

This QSFP28 transceiver allows you to connect a multimode fiber optic cable to a 100 Gbps network router, server or switch. It transmits data up to 100 meters (328 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Functionally Equivalent to Cisco QSFP-100G-SR4-S Transceiver Module

The MSA-compliant N286-100G-SR4SC functions just like the equivalent Cisco QSFP-100G-SR4-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the QSFP-100G-SR4-S.

Hot-Swappable for Installation Without Network Interruption

This input/output device is fully hot-swappable, so you can install it without a potentially costly 100 Gbps network shutdown or device reboot. Just plug the QSFP28 end of the transceiver into your Cisco network device. The other end has an MTP/MPO connector to link with multimode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.

Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring

DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.

Features

• Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
• 100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity
• Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
• With 100GBase-SR technology, get up to 100Gbps data transfer rate over optical fiber cable
